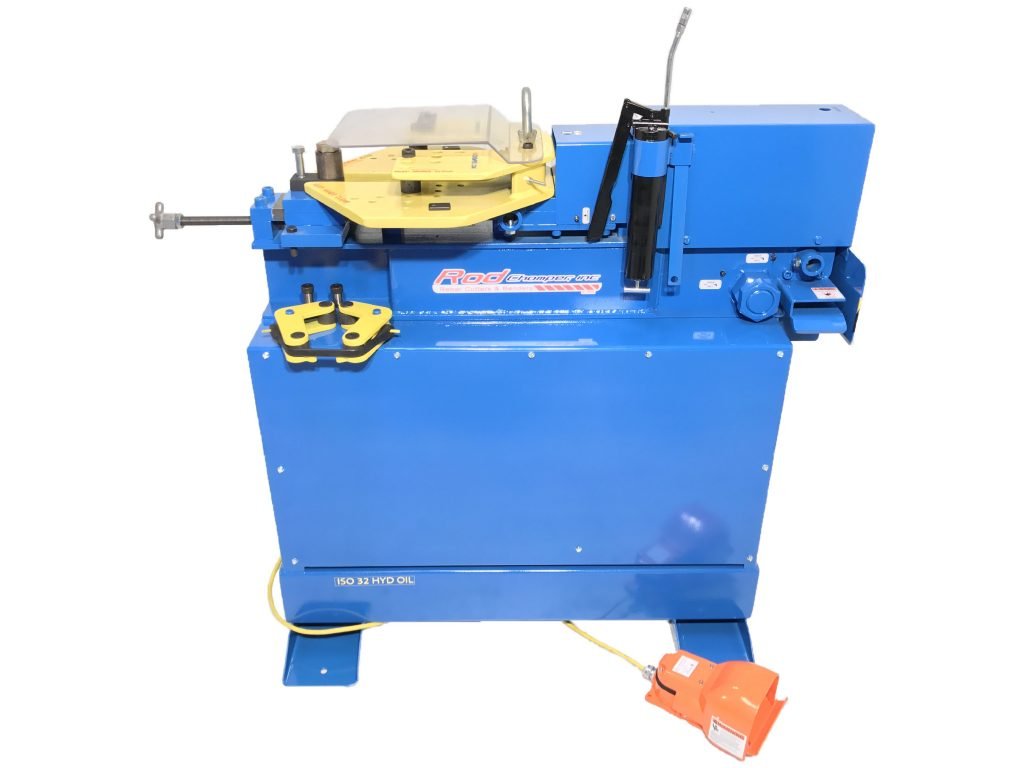

Push Style Cutter Bender Electric 8 bar with Optional Long Stroke and High Speed Features

CBE8HSLS

Push Style Cutter Bender Electric  8 bar with Optional Long Stroke and High Speed Features (reference #20)

Motor: 5 HP High Speed
Voltage: 220v single phase/any voltage 3 phase
Cycle: 50 or 60
Cut Height: 29″
Bending Table Height: 34″
Cutter Cycle Time: 3 Seconds
Bender Speed: Push Style Bender, depends on the bend angle
Dimensions: 48″ (L) x 30 ” (W) x 48 ” (H)
Weight: 950 lbs.
Hydrolic oil capacity: 18 gallons
Foot Control: Optional
OPTIONS: Long Stroke

Do you own this machine? If so, leave a review and receive a coupon code for 10% off your parts order on RodChomperParts.com!

Push Style Cutter Bender Electric 8 bar with Optional Long Stroke and High Speed Features (reference #20)

Bending Capacity

1Bar No. Bar Size (DIA) Max. # of Bars Grade 40 and 60

2

1.4″-6.35mm
10
3
3/8″-9.53mm
7
4
1/2″-12.7mm
4
5
5/8″-15.9mm
2
6
3/4″-19.1mm
1
7
7/8″-22.2mm
1
8
1″-25.4mm
1



Shearing Capacity:
1Bar No. Bar Size (DIA) Max. # of Bars Grade 40 and 60

2

1.4″-6.35mm
12
3
3/8″-9.53mm
8
4
1/2″-12.7mm
6
5
5/8″-15.9mm
3
6
3/4″-19.1mm
2
7
7/8″-22.2mm
1
8
1″-25.4mm
1

Additional information

Weight 950 lbs
Dimensions 48 x 30 x 48 in
Motor Type

Electric

Portability

Stationary

Rebar Features

Cutter Bender, High Speed, Optional Long Stroke, Push Style
