| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 12 | |
| 3 | 3/8″-9.53mm | 8 | |
| 4 | 1/2″-12.7mm | 6 | |
| 5 | 5/8″-15.9mm | 3 | |
| 6 | 3/4″-19.1mm | 2 | |
| 7 | 7/8″-22.2mm | 1 | |
| 8 | 1″-25.4mm | 1 |

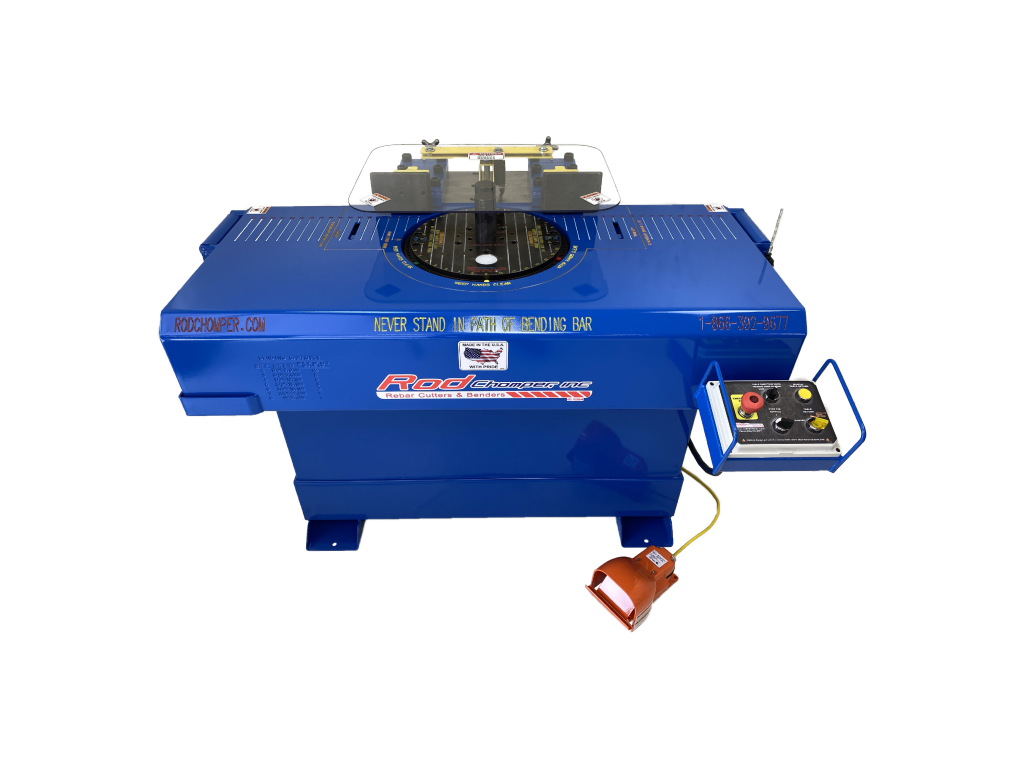

We are first because we last! High Quality manufactured rebar machines made in the USA!
Our service team is here to help when you have an issue. Worldwide support available.
We stand by our work and provide all our new machines with a full 1-year warranty.
Increase your productivity with optional accessories and attachments.
| SPECIFICATIONS | |
|---|---|
| Motor: | 5 HP |
| Voltage: | 220v single phase/any voltage 3 phase |
| Cycle: | 50 or 60 |
| Bending Table Height: | 36″ |
| Bender Speed: | 10 RPMs |
| Dimensions: | 50″ (L) x 36″ (W) x 40″ (H) |
| Weight: | 1200 lbs. |
| Hydraulic oil capacity: | 25 gallons |
| Foot Control: | Standard |
