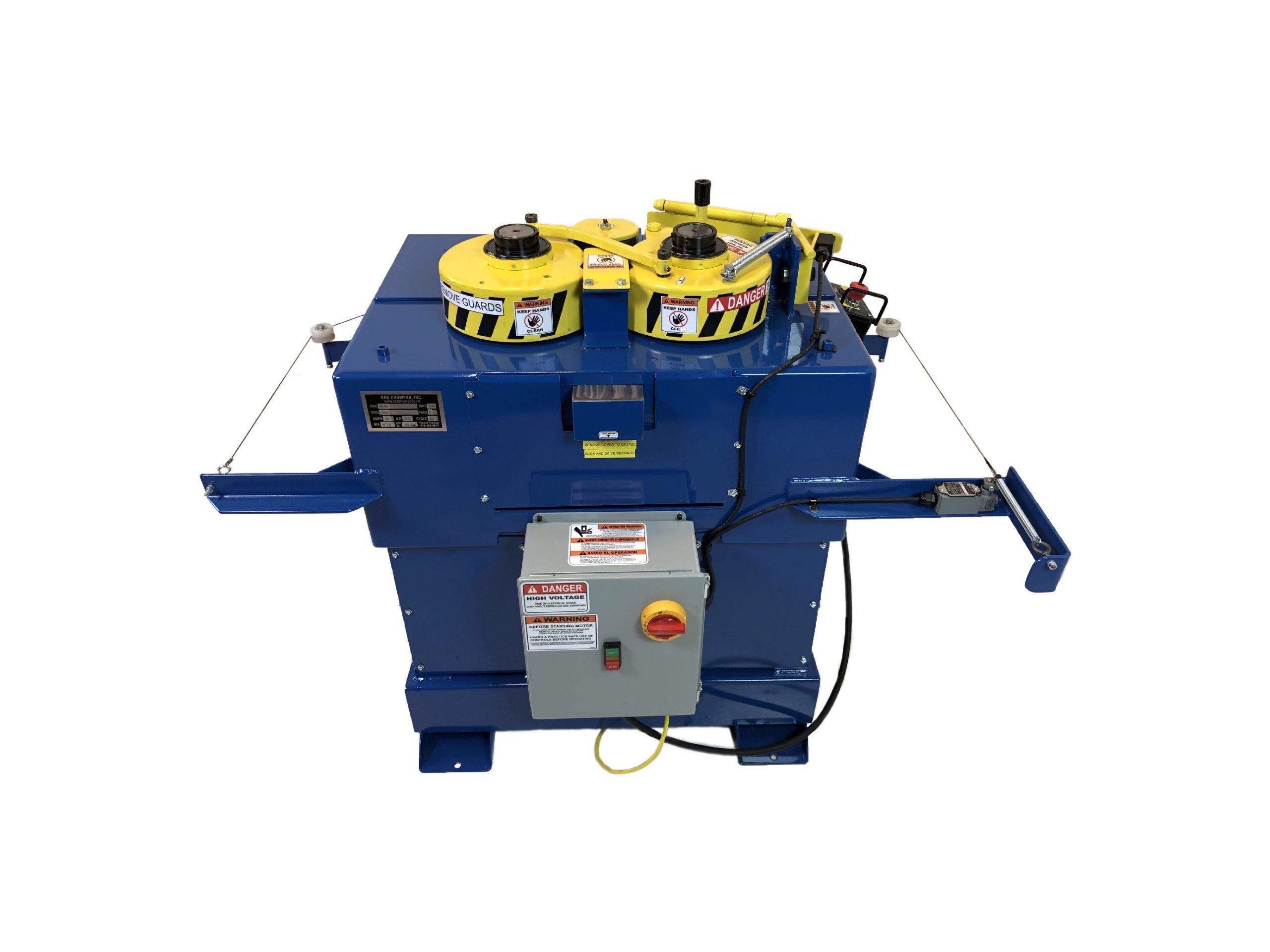

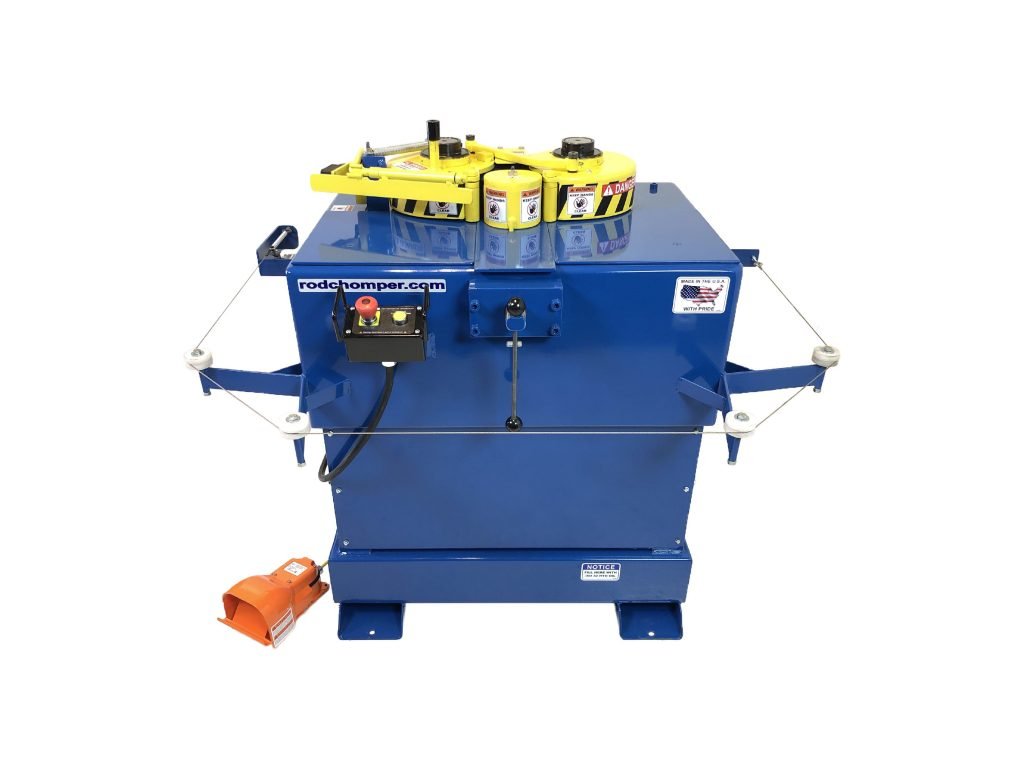

CB9
Browse our equipment and parts. Online orders and quote forms are temporarily unavailable. For sales and service, call (866) 392-9677.
Product information
Model / SKU: CB9
Email about this product
Opens your email app with this product name and page link.
Charts & specifications
BENDING CHART| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 1 | |
| 3 | 3/8″-9.53mm | 1 | |
| 4 | 1/2″-12.7mm | 1 | |
| 5 | 5/8″-15.9mm | 1 | |
| 6 | 3/4″-19.1mm | 1 | |
| 7 | 7/8″-22.2mm | 1 | |
| 8 | 1″-25.4mm | 1 | |
| 9 | 1 1/8″-28.7mm | 1 |
| SPECIFICATIONS | |
|---|---|
| Motor: | 7.5 HP |
| Voltage: | 220v single phase/any voltage 3 phase |
| Cycle: | 60 Cycle |
| Cut Height: | NA |
| Bending Table Height: | 34″ |
| Bender Speed: | 20Ft bar in app. 15 seconds |
| Cutter Cycle Time: | NA |
| Dimensions: | 48″ H x 48″ W x 48″ D |
| Weight: | 1500 lbs |
| Hydraulic oil capacity: | 22 Gallons |
| Foot Control: | Standard |
Bend Range: Up to 9 Bar
Motor Type: Electric
Portability: Stationary
Rebar Features: Circle Bender
