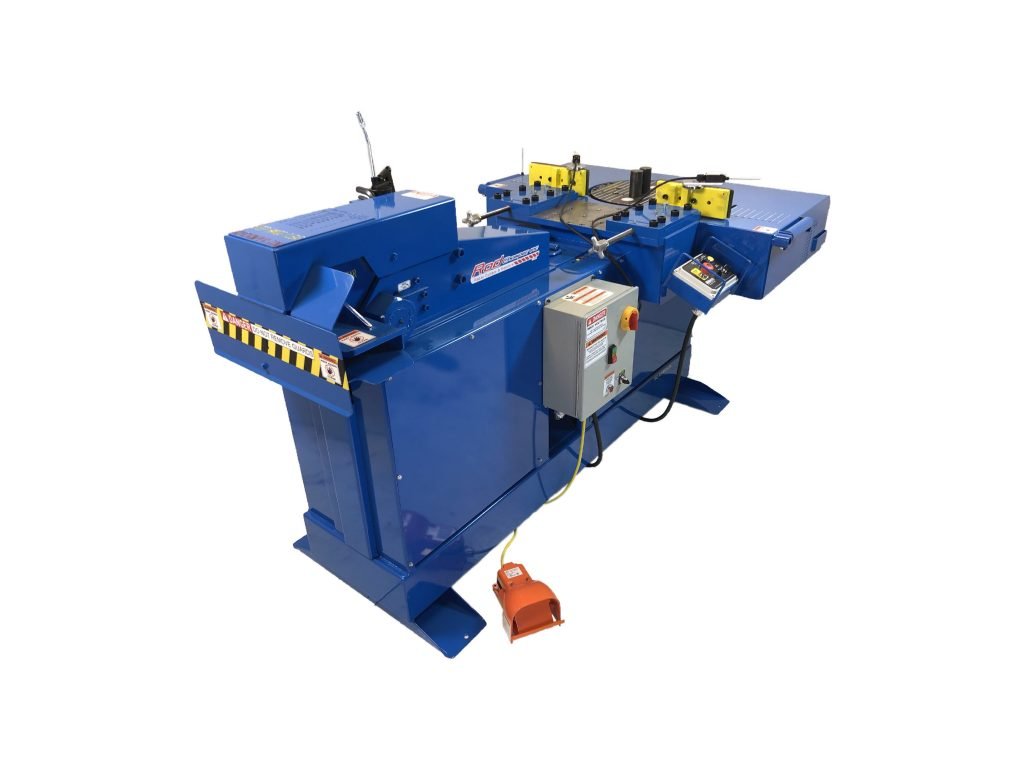

CBRE11
SHEARING CHART
BENDING CHART
| REBAR # | Bar Size (DIA) | Max. # of Bars Grade 40 & 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 18 | |
| 3 | 3/8″-9.53mm | 16 | |
| 4 | 1/2″-12.7mm | 14 | |
| 5 | 5/8″-15.9mm | 7 | |
| 6 | 3/4″-19.1mm | 4 | |
| 7 | 7/8″-22.2mm | 3 | |
| 8 | 1″-25.4mm | 2 | |
| 9 | 1 1/8″-28.7mm | 1 | |
| 10 | 1 1/4″-32.3mm | 1 | |
| 11 | 1 3/8″-36.5mm | 1 |
| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 14 | |
| 3 | 3/8″-9.53mm | 10 | |
| 4 | 1/2″-12.7mm | 7 | |
| 5 | 5/8″-15.9mm | 5 | |
| 6 | 3/4″-19.1mm | 4 | |
| 7 | 7/8″-22.2mm | 2 | |
| 8 | 1″-25.4mm | 2 | |
| 9 | 1 1/8″-28.7mm | 2 | |
| 10 | 1 1/4″-32.3mm | 1 | |
| 11 | 1 3/8″-36.5mm | 1 |
Bob Snowe –
We purchased our machine back in 2006 and it still works well today. We have replaced parts here and there, but it still does its job. Our guys love this machine.
Rating: 5 / 5
James Hucks –
This cutter / bender simply gets the job done. With a good PM Program we feel this one is going to out last the guys running it. Great Machine Rod Chomper will be our choice for future expansion.
Rating: 5 / 5
Paul Hofman –
We have a Dinosaur mfg date of February 2003. We keep a good maintenance program for it and replace filters and hose’s check fluids and grease. In Utah this machine is in the elements and we keep it covered in the days it needs to be. We have replaced several foot controls in the years and rotate the cutters. This machine produces tons of #4 and #5 every day. We bend 4 & 5 as well every day. Today we invest around $700 bucks to get another decade of production out of it.
Reliable and Bomb Proof.
Rating: 5 / 5
