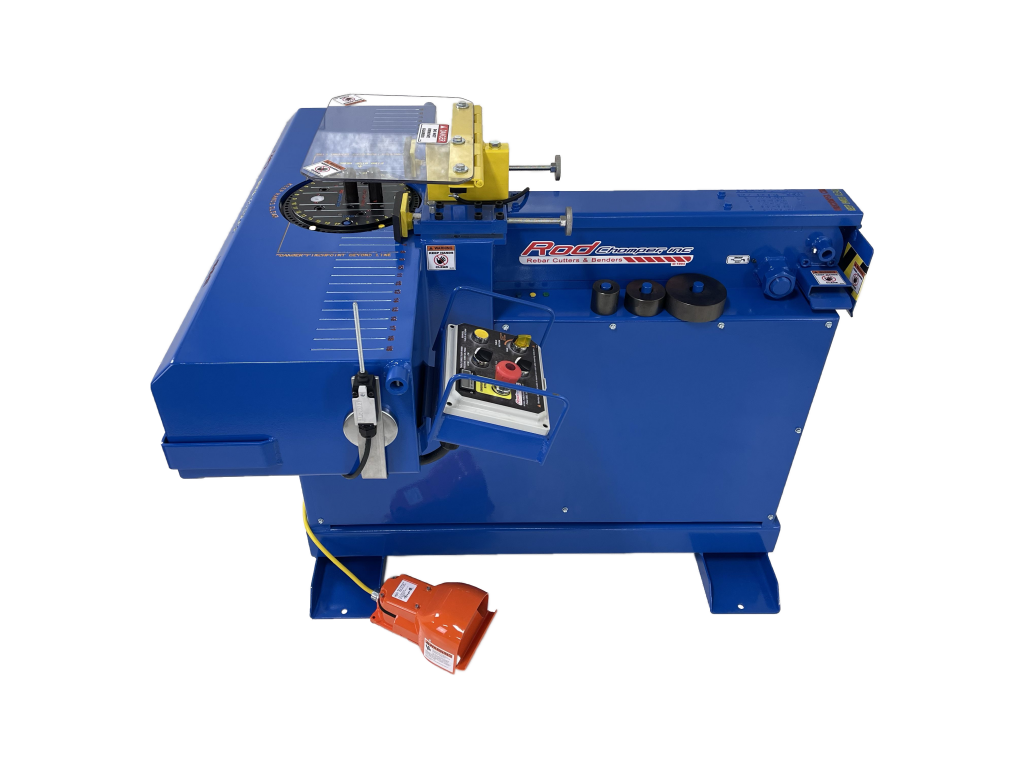

CBRE6
Browse our equipment and parts. Online orders and quote forms are temporarily unavailable. For sales and service, call (866) 392-9677.
Product information
Model / SKU: CBRE6
Email about this product
Opens your email app with this product name and page link.
Charts & specifications
SHEARING CHART| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4"-6.35mm | 10 | |
| 3 | 3/8"-9.53mm | 7 | |
| 4 | 1/2"-12.7mm | 4 | |
| 5 | 5/8"-15.9mm | 2 | |
| 6 | 3/4"-19.1mm | 1 |
| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 3 | |
| 3 | 3/8″-9.53mm | 2 | |
| 4 | 1/2″-12.7mm | 2 | |
| 5 | 5/8″-15.9mm | 1 | |
| 6 | 3/4″-19.1mm | 1 |
| SPECIFICATIONS | |
|---|---|
| Motor: | 2 HP |
| Voltage: | 110/220 Volt Single Phase |
| Cycle: | 60 |
| Bending Table Height: | 32″ |
| Bender Speed: | 5 RPMs |
| Dimensions: | 40″ (L) x 24″ (W) x 35″ (H) |
| Weight: | 500 lbs. |
| Hydraulic oil capacity: | 3.5 gallons |
| Foot Control: | Standard |
Cut Range: Up to 6 Bar
Bend Range: Up to 6 Bar
Motor Type: Electric
Portability: Stationary
Rebar Features: Cutter Bender, Rotary
