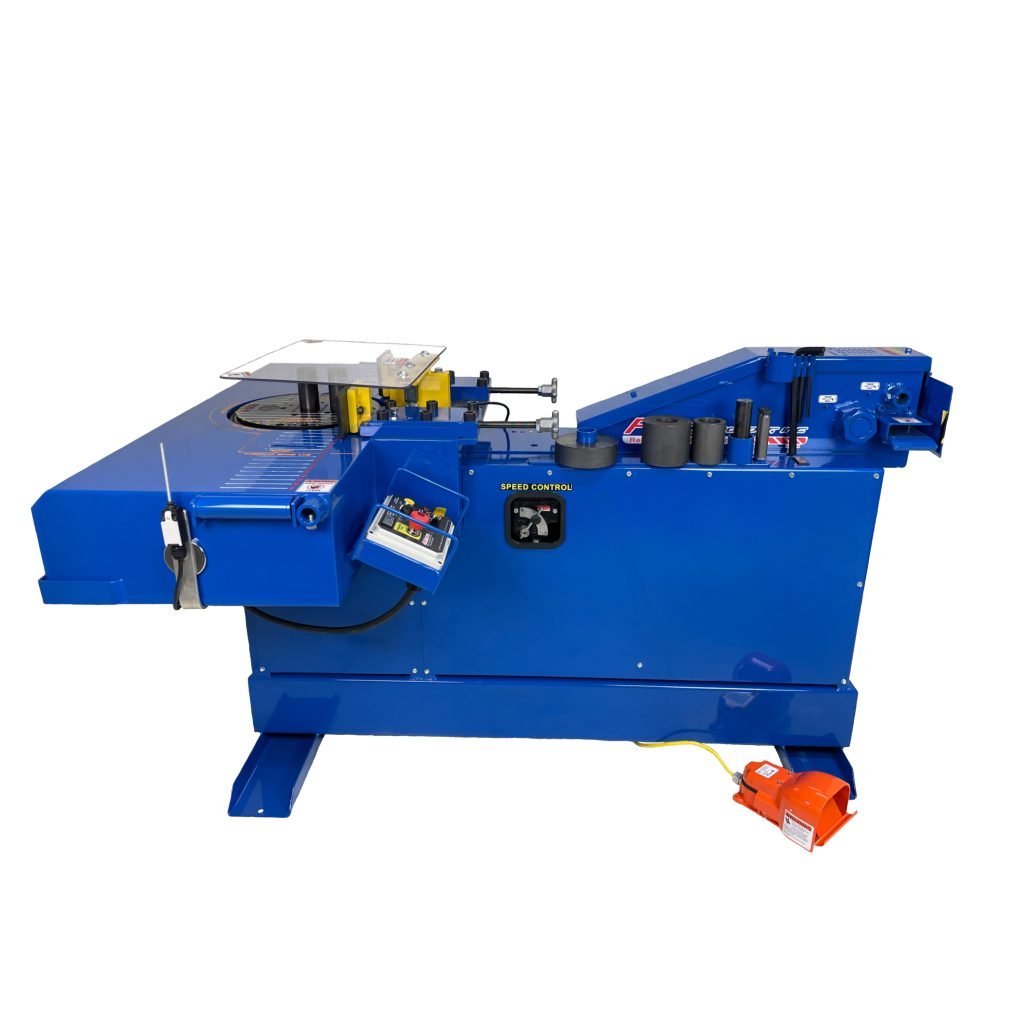

CBRE8
Browse our equipment and parts. Online orders and quote forms are temporarily unavailable. For sales and service, call (866) 392-9677.
Product information
Model / SKU: CBRE8
Email about this product
Opens your email app with this product name and page link.
Charts & specifications

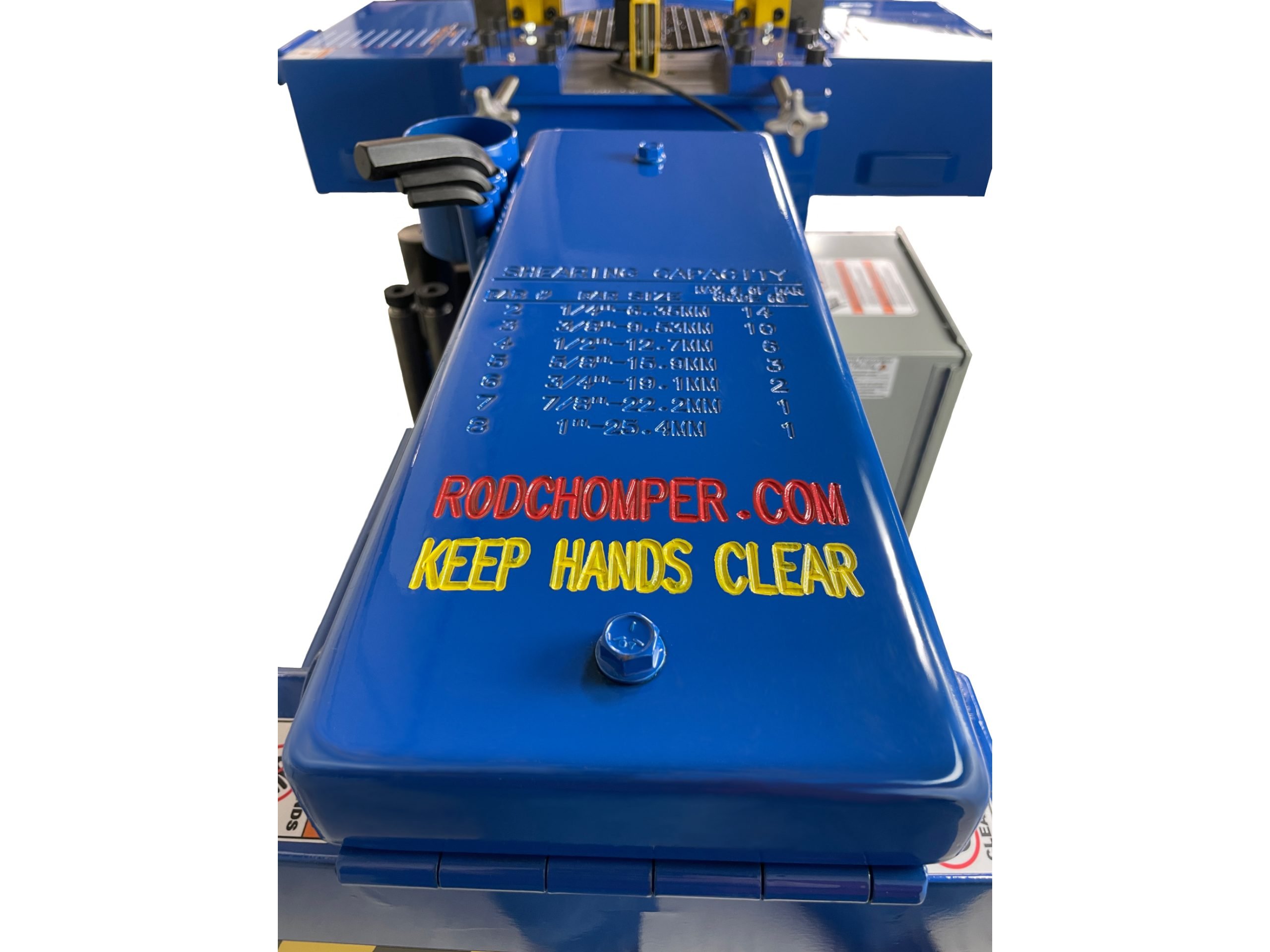

SHEARING CHART| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 12 | |
| 3 | 3/8″-9.53mm | 8 | |
| 4 | 1/2″-12.7mm | 6 | |
| 5 | 5/8″-15.9mm | 3 | |
| 6 | 3/4″-19.1mm | 2 | |
| 7 | 7/8″-22.2mm | 1 | |
| 8 | 1″-25.4mm | 1 |
| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 12 | |
| 3 | 3/8″-9.53mm | 8 | |
| 4 | 1/2″-12.7mm | 6 | |
| 5 | 5/8″-15.9mm | 3 | |
| 6 | 3/4″-19.1mm | 2 | |
| 7 | 7/8″-22.2mm | 1 | |
| 8 | 1″-25.4mm | 1 |
| SPECIFICATIONS | |
|---|---|
| Motor: | 5 HP |
| Voltage: | 220v single phase/any voltage 3 phase |
| Cycle: | 50 or 60 |
| Cut Height: | 31″ |
| Bending Table Height: | 36″ |
| Cutter Cycle time: | 6 seconds |
| Bender Speed: | 10 RPMs |
| Dimensions: | 70″ (L) x 50″ (W) x 40″ (H) |
| Weight: | 1800 lbs. |
| Hydraulic oil capacity: | 33 gallons |
| Foot Control: | Standard |
Cut Range: Up to 8 Bar
Bend Range: Up to 8 Bar
Motor Type: Electric
Portability: Stationary
Rebar Features: Cutter Bender, High Speed, Rotary
