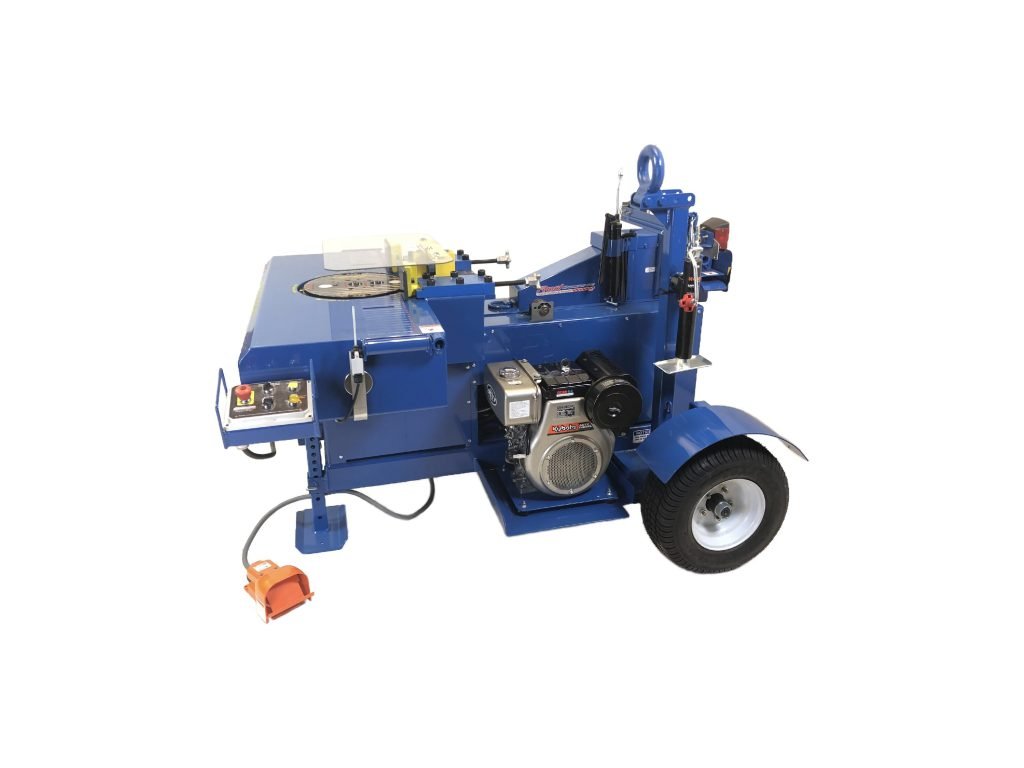

CBRPD8
Browse our equipment and parts. Online orders and quote forms are temporarily unavailable. For sales and service, call (866) 392-9677.
Product information
Model / SKU: CBRPD8
Email about this product
Opens your email app with this product name and page link.
Charts & specifications
SHEARING CHART| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 12 | |
| 3 | 3/8″-9.53mm | 8 | |
| 4 | 1/2″-12.7mm | 6 | |
| 5 | 5/8″-15.9mm | 3 | |
| 6 | 3/4″-19.1mm | 2 | |
| 7 | 7/8″-22.2mm | 1 | |
| 8 | 1″-25.4mm | 1 |
| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 12 | |
| 3 | 3/8″-9.53mm | 8 | |
| 4 | 1/2″-12.7mm | 6 | |
| 5 | 5/8″-15.9mm | 3 | |
| 6 | 3/4″-19.1mm | 2 | |
| 7 | 7/8″-22.2mm | 1 | |
| 8 | 1″-25.4mm | 1 |
| SPECIFICATIONS | |
|---|---|
| Motor: | 9.4 HP Electric Start |
| Voltage: | 12 volt |
| Cycle: | 4 cycle Diesel |
| Cut Height: | 31″ |
| Bending Table Height: | 36″ |
| Cutter Cycle Time: | 3 seconds |
| Bender Speed: | 12 rpm |
| Dimensions: | 6′ (L) x 5′ (W) x 4′ (H) |
| Weight: | 2200 lbs. |
| Hydrolic oil capacity: | 16 gallons |
| Foot Control: | Standard, MD (Multi-Directional) |
Cut Range: Up to 8 Bar
Bend Range: Up to 8 Bar
Motor Type: Diesel
Portability: Portable
Rebar Features: Cutter Bender, Dual Control, Rotary
