BENDING CHART
| REBAR # | Bar Size (DIA) | Max # of Bars Grade 40 & 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 14 | |
| 3 | 3/8″-9.53mm | 10 | |
| 4 | 1/2″-12.7mm | 6 | |
| 5 | 5/8″-15.9mm | 3 | |
| 6 | 3/4″-19.1mm | 2 | |
| 7 | 7/8″-22.2mm | 1 | |
| 8 | 1″-25.4mm | 1 |
SHEARING CHART
| REBAR # | Bar Size (DIA) | Max # of Bars Grade 40 & 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 12 | |
| 3 | 3/8″-9.53mm | 8 | |
| 4 | 1/2″-12.7mm | 6 | |
| 5 | 5/8″-15.9mm | 3 | |
| 6 | 3/4″-19.1mm | 2 | |
| 7 | 7/8″-22.2mm | 1 | |
| 8 | 1″-25.4mm | 1 |
Now Offering Shear Lines, Power Dumps & Powered Feeders!
We are first because we last! High Quality manufactured rebar machines made in the USA!
Our service team is here to help when you have an issue. Worldwide support available.
We stand by our work and provide all our new machines with a full 1-year warranty.
Increase your productivity with optional accessories and attachments.

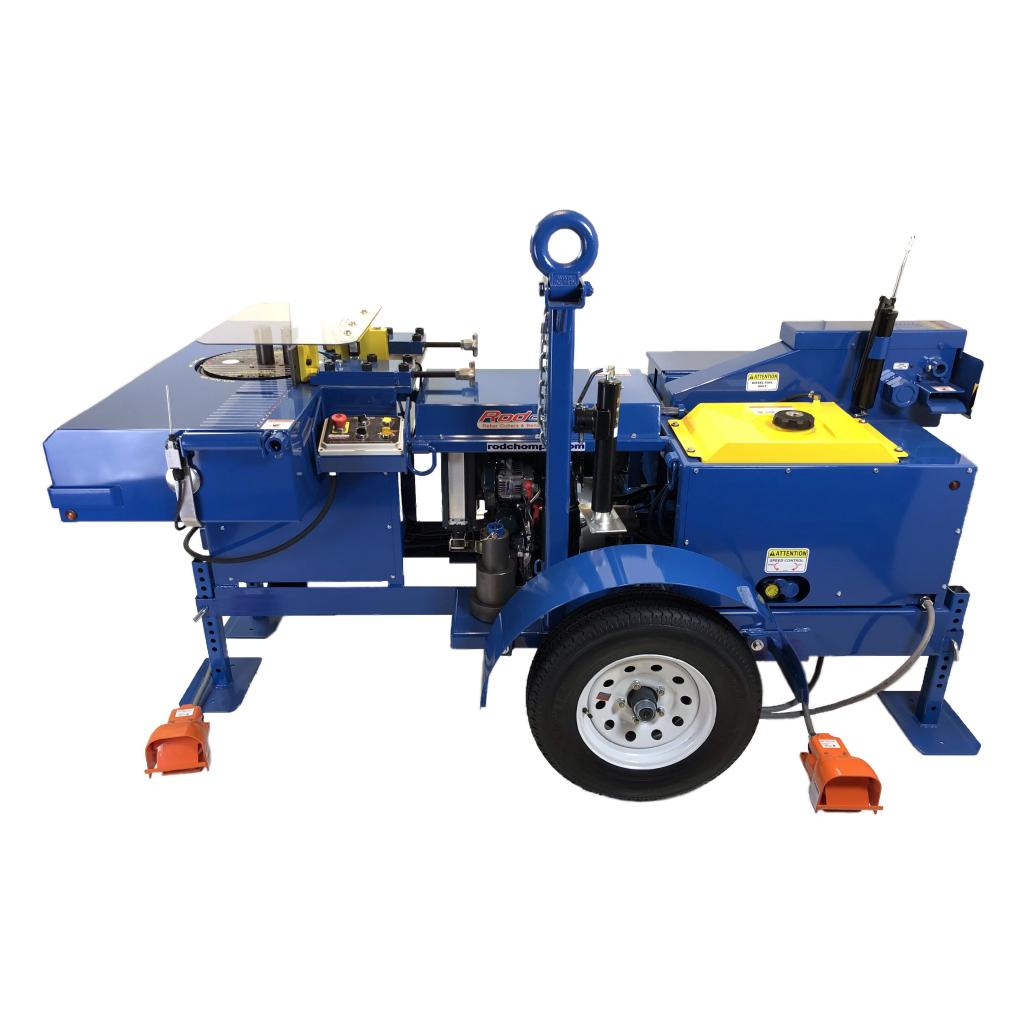

| SPECIFICATIONS | |
|---|---|
| Motor: | 16 HP Kubota 2 cylinder Liquid cooled Diesel |
| Voltage: | 12 volt |
| Cycle: | 4 cycle |
| Bending Table Height: | 40″ |
| Bender Speed: | 0-15 RPMs |
| Dimensions: | 108″ (L) x 60″ (W) x 44″ (H) |
| Weight: | 2700 lbs. |
| Hydraulic oil capacity: | 30 gallons |
| Foot Control: | Standard w/ 2 foot controls |
