CE6
Browse our equipment and parts. Online orders and quote forms are temporarily unavailable. For sales and service, call (866) 392-9677.
Product information

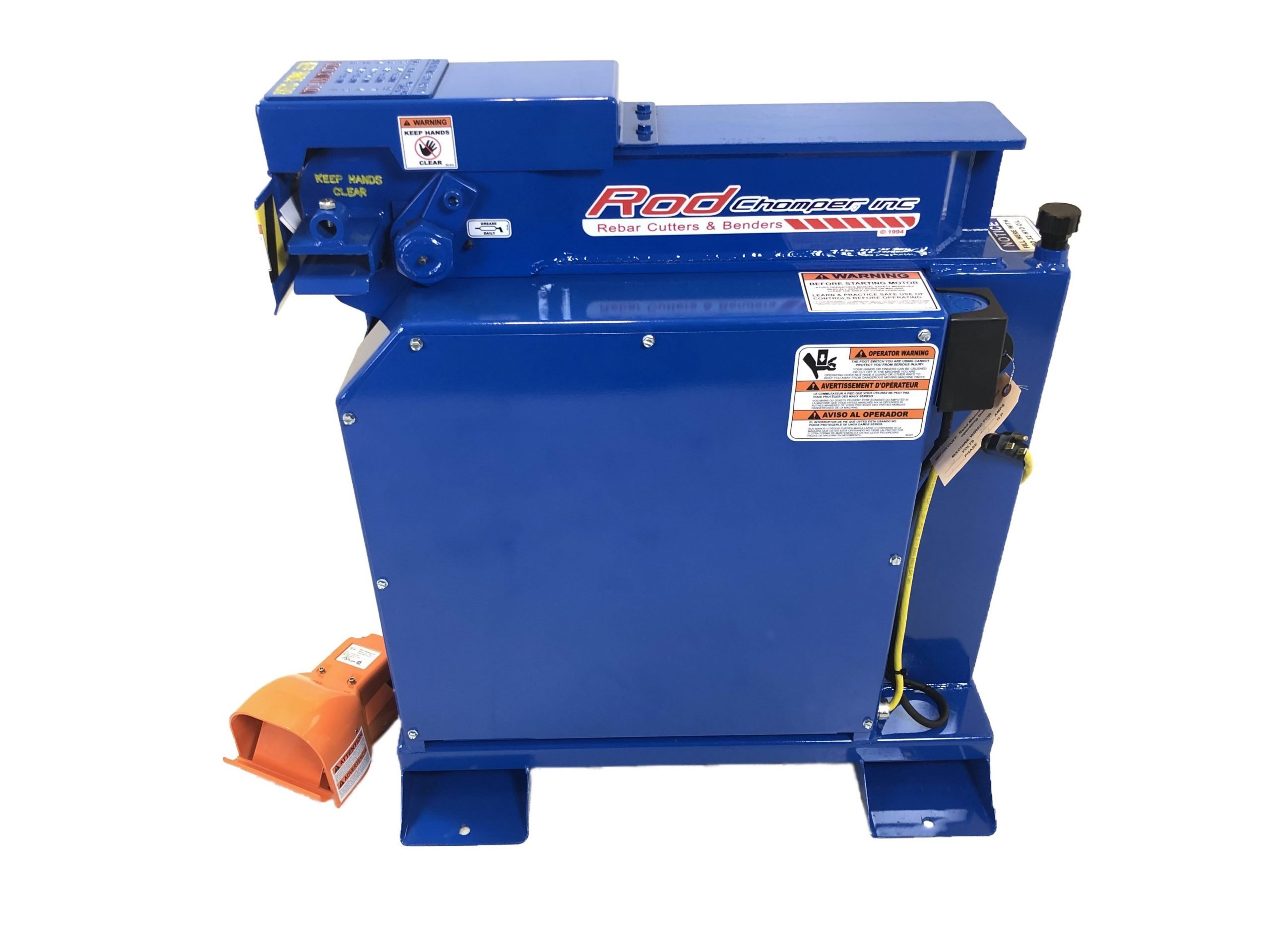

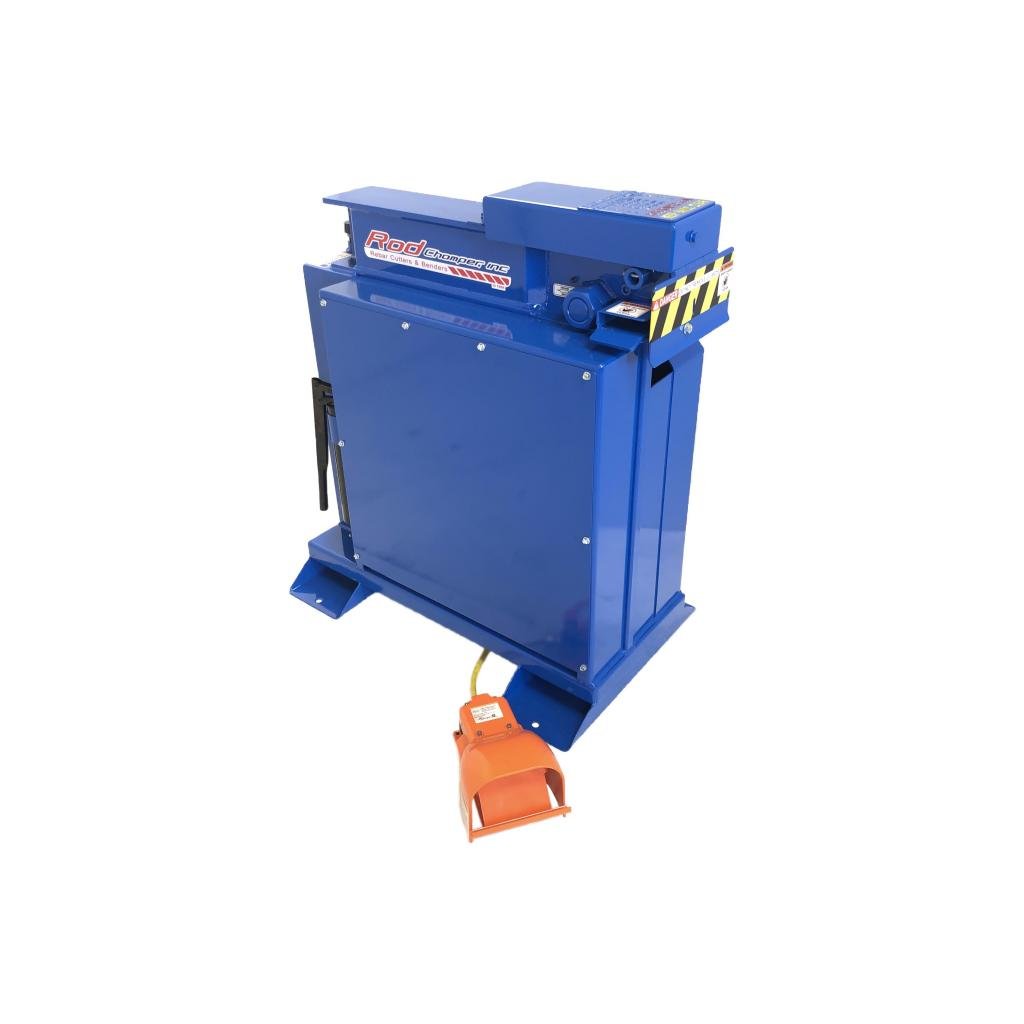

Model / SKU: CE6
Email about this product
Opens your email app with this product name and page link.
Charts & specifications
SHEARING CHART| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4"-6.35mm | 10 | |
| 3 | 3/8"-9.53mm | 7 | |
| 4 | 1/2"-12.7mm | 4 | |
| 5 | 5/8"-15.9mm | 2 | |
| 6 | 3/4"-19.1mm | 1 |
| SPECIFICATIONS | |
|---|---|
| Motor: | 1.5 HP |
| Voltage: | 120v – 220 Single Phase |
| Cycle: | 50 or 60 |
| Cut Height: | 29″ |
| Bending Table Height: | NA |
| Cutter Cycle time: | 4 seconds |
| Bender Speed: | NA |
| Dimensions: | 36″ (L) x 27″ (W) x 38″ (H) |
| Weight: | 310 lbs. |
| Hydraulic oil capacity: | 3.5 gallons |
| Foot Control: | Optional |
Cut Range: Up to 6 Bar
Motor Type: Electric
Portability: Stationary
Rebar Features: Cutter
