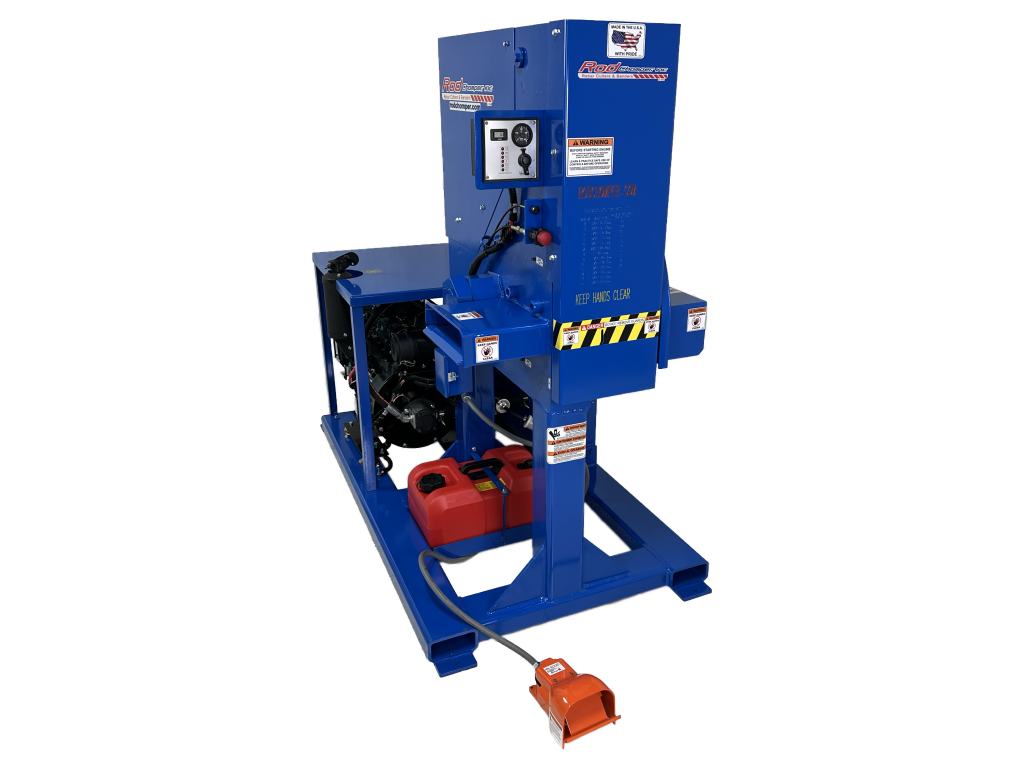

CG14
Browse our equipment and parts. Online orders and quote forms are temporarily unavailable. For sales and service, call (866) 392-9677.
Product information
Model / SKU: CTD14
Email about this product
Opens your email app with this product name and page link.
Charts & specifications
CG14 SHEARING CHART| 1Bar No. | Bar Size (DIA) | Max. # of Bars Grade 40 and 60 | |
|---|---|---|---|
| 2 | 1.4″-6.35mm | 30 | |
| 3 | 3/8″-9.53mm | 28 | |
| 4 | 1/2″-12.7mm | 21 | |
| 5 | 5/8″-15.9mm | 15 | |
| 6 | 3/4″-19.1mm | 10 | |
| 7 | 7/8″-22.2mm | 6 | |
| 8 | 1″-25.4mm | 4 | |
| 9 | 1 1/8″-28.7mm | 3 | |
| 10 | 1 1/4″-32.3mm | 2 | |
| 11 | 1 7/16″-36.5mm | 2 | |
| 12 | 1 1/2″-38.1mm | 1 | |
| 13 | 1 5/8″- 41.27mm | 1 | |
| 14 | 1 3/4″- 43.75 mm | 1 |
| SPECIFICATIONS | |
|---|---|
| Motor: | 32 HP Kubota 3 Cylinder Gas, liquid cooled |
| Voltage: | 12v |
| Cycle Time: | 1-6 Seconds |
| Cutting Height: | 36″ |
| Dimensions: | 76″ L X 37 ” W X 61 ” H |
| Weight: | 4500 lbs. |
| Hydraulic oil capacity: | 80 gallons |
| Foot Control: | Standard |
Cut Range: Up to 14 Bar
Motor Type: Gasoline
Portability: Stationary
Rebar Features: Cutter
